The Power to Surprise

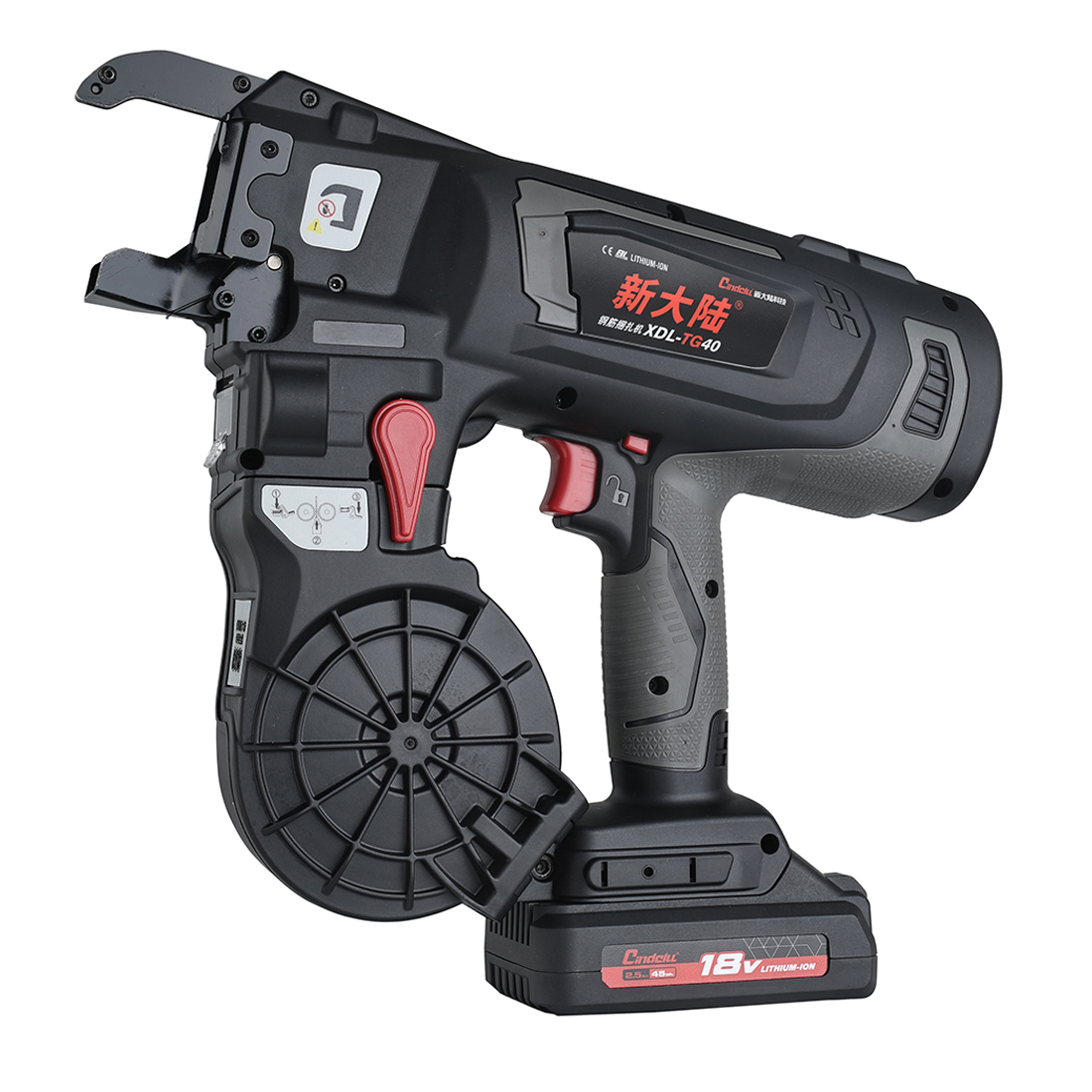

Gen 5 Intelligent Rebar Tying Machine
BUILT FOR FASTER TYING. DESIGNED FOR EASIER WORK
XDL-T25   •   XDL-T40
NEWEST
•Single-hand operation with fast tying speed; each tie completed in 0.45-0.5 seconds.
•Up to 3-4x higher productivity compared to manual tying
•Compact tie height of only 1.2 cm,
delivering up to 100% wire saving vs.Gen 4 models.
•Durable mechanical components with dual brushless motors, designed for longer service life and stable operation.
High-Efficiency Intelligent Rebar Tying Solution
Tying speed：0.5s
Up to 300% Productivity
Comapred to manual tying
Balanced, ergonomic design
for effortless and efficient operation

Smooth operation.

short tying time,

high efficiency

and tightness.







Dual rushless

motors,low noise,

long service life,






Large-capacity reel

magazine, 1.3 mm

wire diameter.


Up to 325 ties per coil

(D10 x D10 rebar).


Reduced wire

consumption up to 100%

compared with XDL-40A

Tie height: 1.2cm

Single wire, Pull back mechanism,

high tightness and cost saving

Single-wire feeding, easy to
operate,reliable tying force.

Safe using
Hidden locking release lever
inside the reel magazine
to prevent accidental operation.

Screen display

Display tension level/tie count

/Fault code

Break Tradition. Tie Smarter
Boost Productivity. Reduce Costs.
WHY CHOOSE US?
  • XDL-T40

  • XDL-T40

    • 0.00
      0.00
Product Description
MULTIPLE REBAR COMBINATIONS
XDL-T25
XDL-T40
XDL-T40
1.3mm
Stainless
Steel Wire
1.3mm
Black
Annealed Wire
1.3mm
Galvanized wire
1.3mm
PVC-Coated Wire
TYING WIRE SERIES
Rebar Size                                              12-44mm
Tying Speed                                         0.5 seconds
Wraps per tie                                           1 wrap
Battery                            18V 2.5Ah Li-ion       18V 5.0Ah Li-ion
Ties Per Charge                Over 2000 ties             Over 4000 ties
Charging Time                    50 minutes                   90 minutes
Weight(incl.battery)                2.7kg                            2.9kg
Dimension(LxWxH)         320x97x315mm          320x97x335mm
Rebar size                                            Ties per coil
D10xD10                                                 325ties
D12xD12                                                 295ties
D16xD16                                                 255ties
D20xD20                                                 225ties
D25xD12xD12                                        225ties
XDL-T40
DATA
(Wire Coil) Material:Q195 Length:37±1m.Diameter:1.3mm
DATA
XDL-T25
(Wire Coil) Material:Q195 Length:37±1m.Diameter:1.3mm
Rebar Size                                              8-26mm
Tying Speed                                        0.45 seconds
Wraps per tie                                           1 wrap
Battery                            18V 2.5Ah Li-ion         18V 5.0Ah Li-ion
Ties Per Charge                Over 2000 ties             Over 4000 ties
Charging Time                    50 minutes                   90 minutes
Weight(incl.battery)                2.6kg                            2.8kg
Dimension(LxWxH)         305x97x310mm          305x97x330mm
Rebar size                                            Ties per coil
D6xD6                                                      420ties
D8xD8                                                      350ties
D10xD10                                                 325ties
D12xD12                                                 295ties
TYING WIRE SERIES
1.3mm
Black
Annealed Wire
1.3mm
Stainless
Steel Wire
1.3mm
Galvanized wire
1.3mm
PVC-Coated Wire
