  • XDL-F30A

  • XDL-F30A

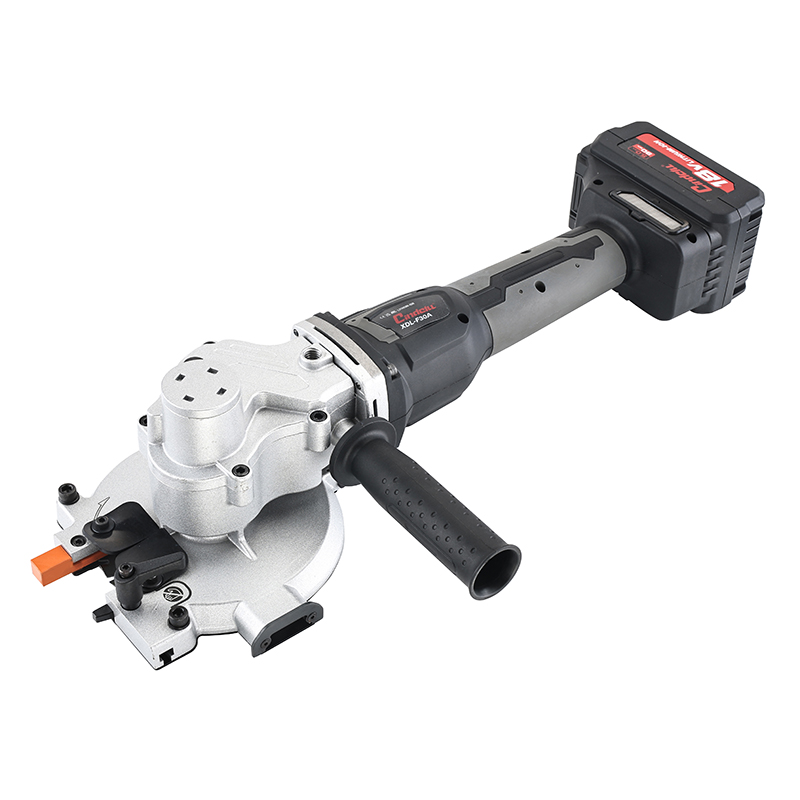

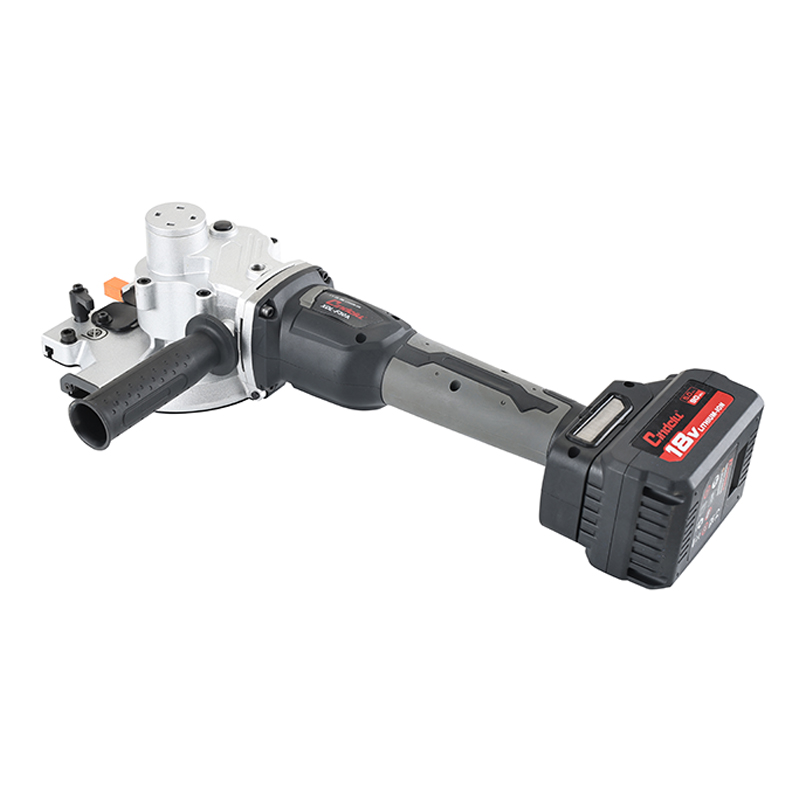

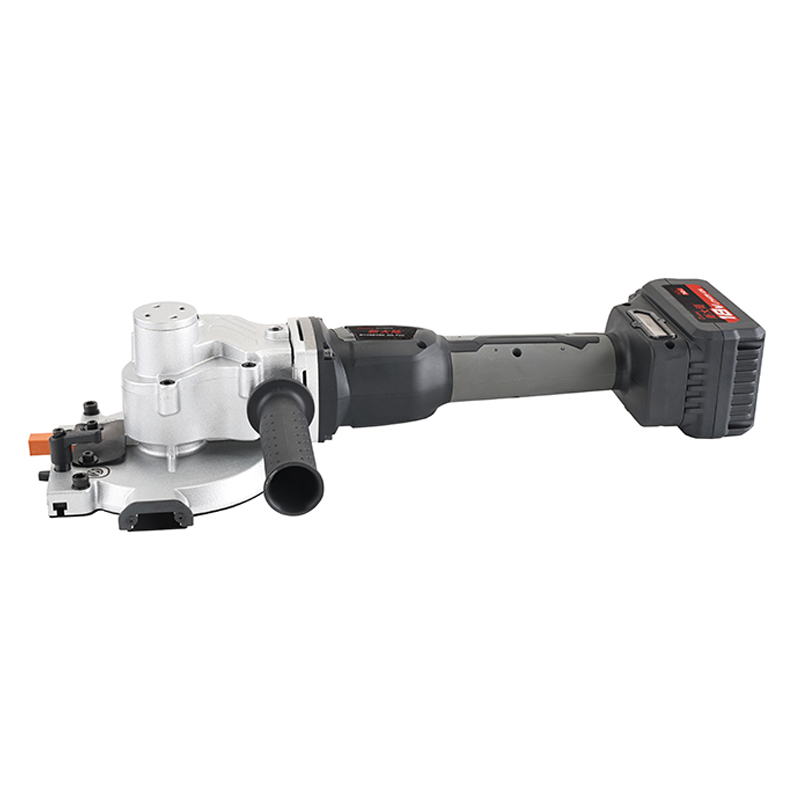

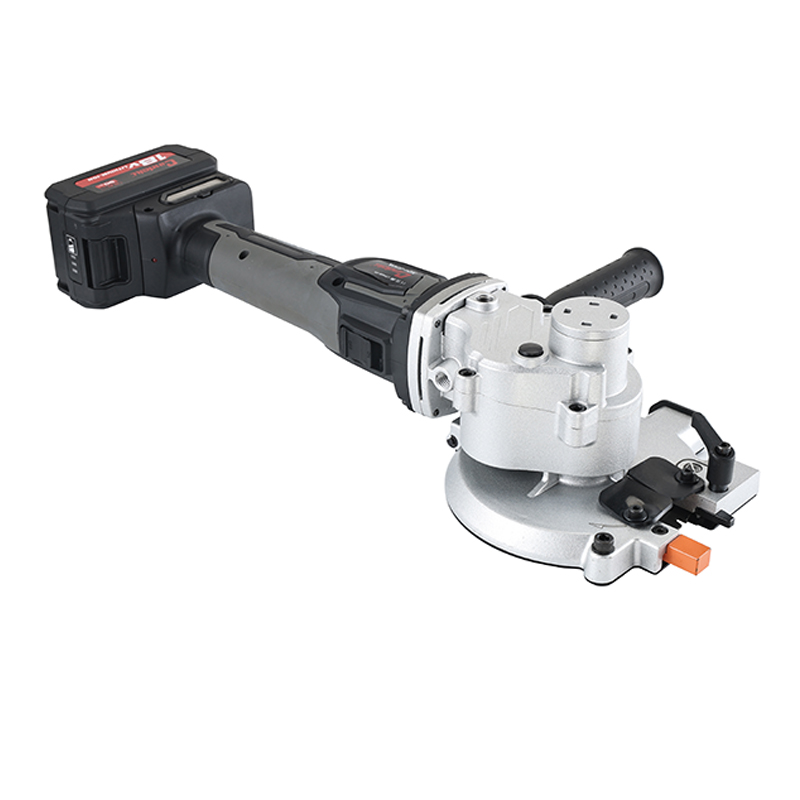

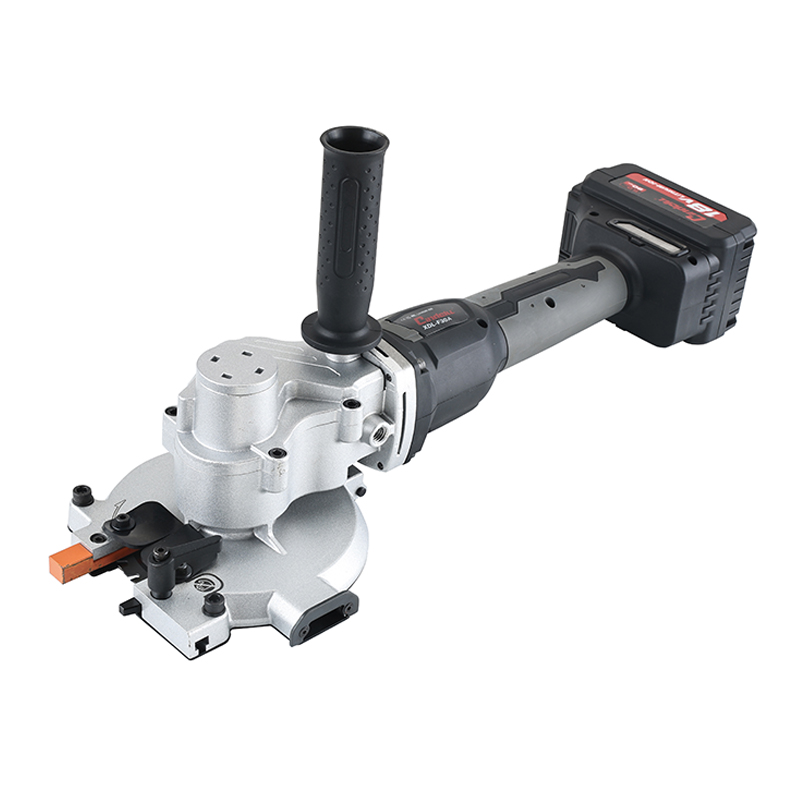

    XDL-F30A
    Rebar Flush Cutter
    low spark,portable,efficient and safe

    ● Effortless cutting up to 3mm flush to the surface
    ●Mainly used in construction, industry and rescue/emergency operations
    ●Clean and burr free cuts
    ●Cutting diameters ranging from 8mm to 30mm
    ●Three position adjustable side handle
    ●Brush-less motor with longer lifespan
    ●Dust bag included
    ●18V 5Ah Li-ion battery

    • 0.00
      0.00
Product Description

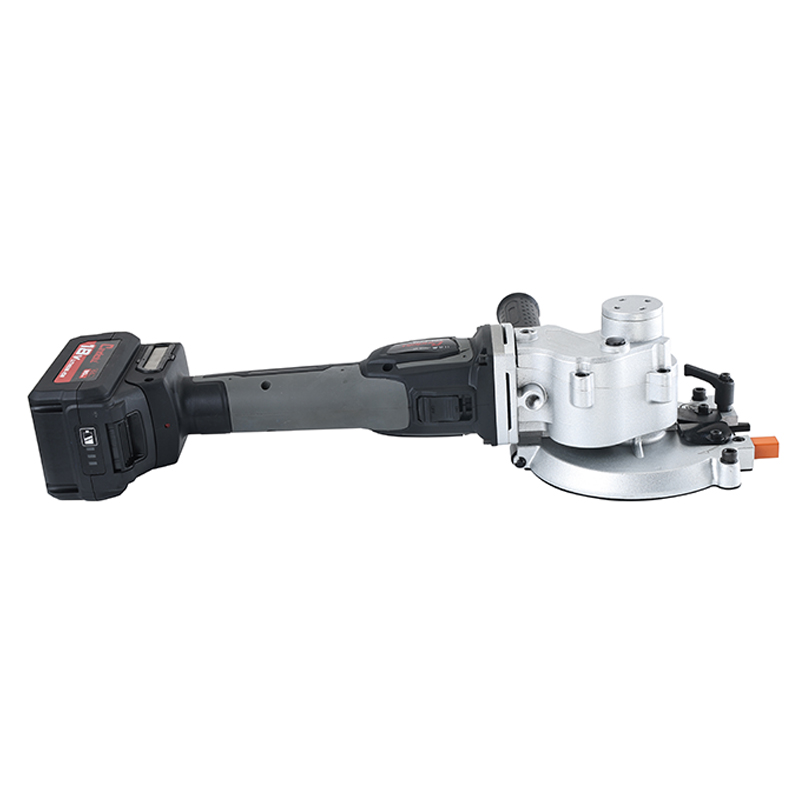

XDL-F30A
Rebar Flush Cutter
low spark,portable,efficient and safe

● Effortless cutting up to 3mm flush to the surface
●Mainly used in construction, industry and rescue/emergency operations
●Clean and burr free cuts
●Cutting diameters ranging from 8mm to 30mm
●Three position adjustable side handle
●Brush-less motor with longer lifespan
●Dust bag included
●18V 5Ah Li-ion battery

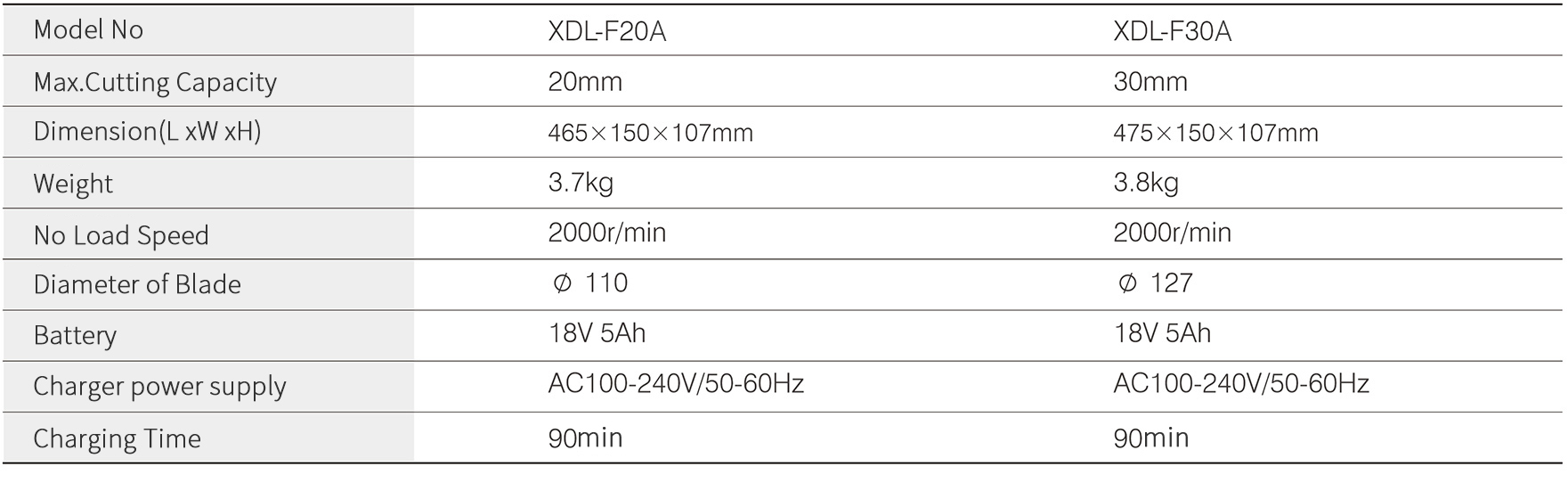

Model NoXDL-F20AXDL-F30A
Max.Cutting Capacity20mm30mm
Dimension(L x W x H)465 × 150 × 107 mm475 × 150 × 107 mm
Weight3.7kg3.8kg
No Load Speed2000r/min2000r/min
Diameter of BladeØ 110Ø 127
Battery18V 5Ah18V 5Ah
Charger power supplyAC100-240V/50-60HzAC100-240V/50-60Hz
Charging Time90min90min
MULTIPLE REBAR COMBINATIONS
XDL-T25
XDL-T40
XDL-T40
1.3mm
Stainless
Steel Wire
1.3mm
Black
Annealed Wire
1.3mm
Galvanized wire
1.3mm
PVC-Coated Wire
TYING WIRE SERIES
Rebar Size                                              12-44mm
Tying Speed                                         0.5 seconds
Wraps per tie                                           1 wrap
Battery                            18V 2.5Ah Li-ion       18V 5.0Ah Li-ion
Ties Per Charge                Over 2000 ties             Over 4000 ties
Charging Time                    50 minutes                   90 minutes
Weight(incl.battery)                2.7kg                            2.9kg
Dimension(LxWxH)         320x97x315mm          320x97x335mm
Rebar size                                            Ties per coil
D10xD10                                                 325ties
D12xD12                                                 295ties
D16xD16                                                 255ties
D20xD20                                                 225ties
D25xD12xD12                                        225ties
XDL-T40
DATA
(Wire Coil) Material:Q195 Length:37±1m.Diameter:1.3mm
DATA
XDL-T25
(Wire Coil) Material:Q195 Length:37±1m.Diameter:1.3mm
Rebar Size                                              8-26mm
Tying Speed                                        0.45 seconds
Wraps per tie                                           1 wrap
Battery                            18V 2.5Ah Li-ion         18V 5.0Ah Li-ion
Ties Per Charge                Over 2000 ties             Over 4000 ties
Charging Time                    50 minutes                   90 minutes
Weight(incl.battery)                2.6kg                            2.8kg
Dimension(LxWxH)         305x97x310mm          305x97x330mm
Rebar size                                            Ties per coil
D6xD6                                                      420ties
D8xD8                                                      350ties
D10xD10                                                 325ties
D12xD12                                                 295ties
TYING WIRE SERIES
1.3mm
Black
Annealed Wire
1.3mm
Stainless
Steel Wire
1.3mm
Galvanized wire
1.3mm
PVC-Coated Wire
